Mini multímetro digital, medidor de voltaje CA/CC OHMS, instrumento de medición eléctrica
Mini multímetro digital, medidor de voltaje CA/CC OHMS, instrumento de medición eléctrica
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: ANENG
ANENG Model: M113
Origin: Mainland China
Hign-concerned Chemical: none
DIY Supplies: ELECTRICAL
AC Voltage: 0.2-600V
Display Type: Digital display
DC Voltage: 0.8-600V
AC Current: -
Measuring Resistance Range: 0-10MOhm
DC Current: -
Measuring Capacitance Range: M113 Digital Mini Multimeter
Operating Mode: Auto
Model Number: M113 Digital Mini Multimeter
Is Smart Device: no
Measuring Inductance Range: Multimeter
Dimensions: Multimeter
Operating Temperature: 0 - 40 ℃
Choice: yes
Description:
This meter is a portable digital multimeter. It has stable performance, low power consumption, novel structure, safe and reliable, and is the ideal measuring instrument for the majority of users.
Meter can measure DC voltage, AC voltage, resistance connectivity and capacitance, with non-contact voltage detection function, timely remind users to pay attention to the operation of safety, so that users use more safe and assured.

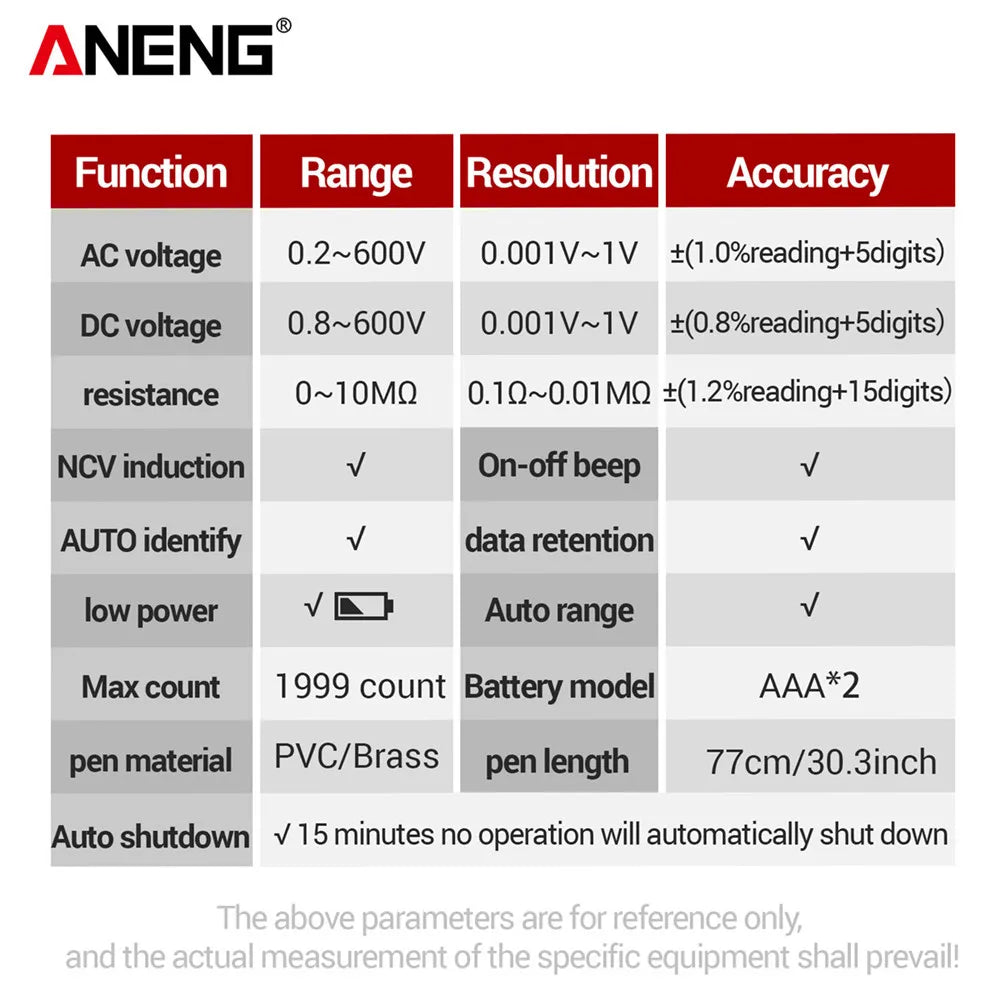

Features:
Function |
Range |
Resolution |
Accuracy |
AC voltage |
0.2~600V |
0.001V~1V |
± (1.0%reading+5digits) |
DC voltage |
0.8~600V |
0.001V~1V |
± (0.8%reading+5digits) |
Resistance |
0~10MΩ |
0.1Ω~0.01MΩ |
±(1.2%reading+15digits) |
NCV induction |
√ |
On-off beep |
√ |
AUTO identify |
√ |
Data retention |
√ |
Low power |
√ |
Auto range |
√ |
Max count |
1999 count |
Battery model |
AAA*2(without shipment) |
Pen material |
PVC/Brass |
Pen length |
73cm/28.7inch |

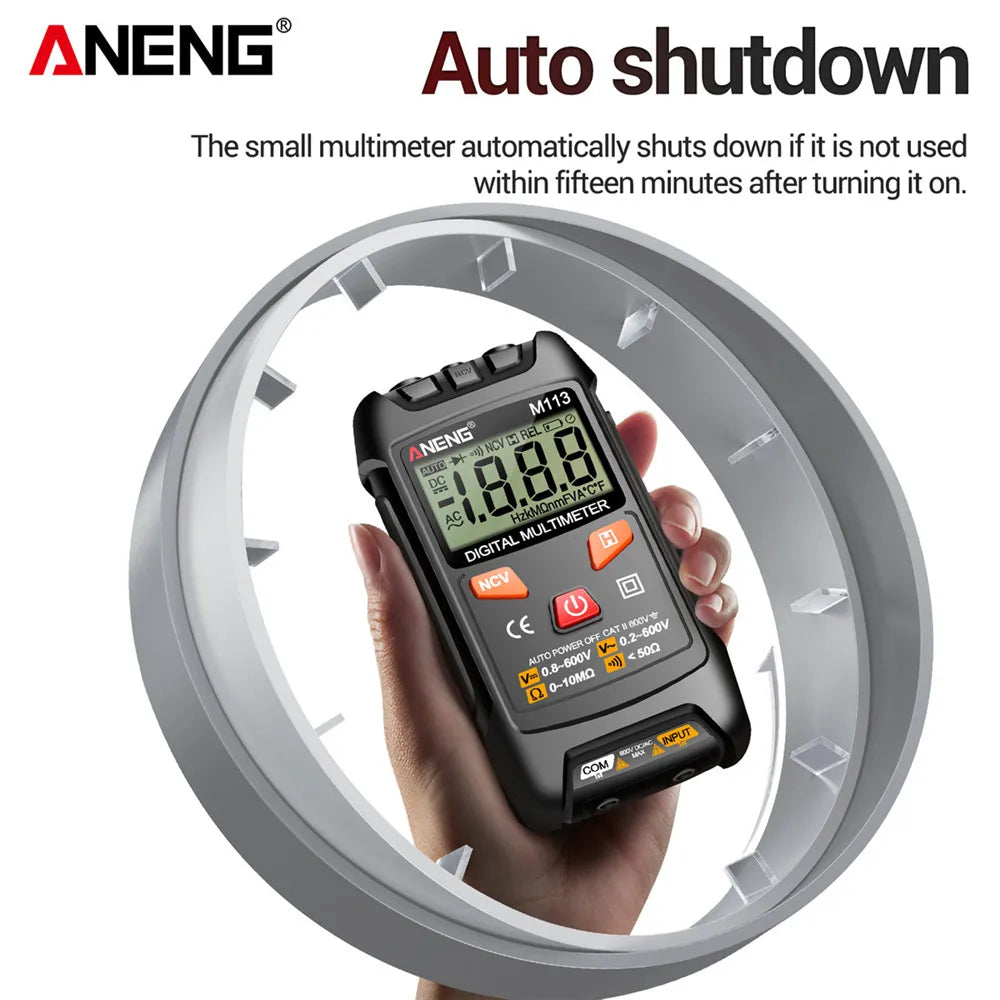

Auto shutdown |
√ 15 minutes no operation will automatically shut down |
||
Packing List:
1 * Digital Multimeter
1 * Test leads
1 * English user Manual
